Nginx No permission to bind port 9080 on CentOS 7

Overview

Nginx is an open-source, high performance HTTP & ReverseProxy Server, it can also be configured to operate as IMAP / POP3 Server.

It’s well-known for high performance, stability, rich feature set, simple configuration and low resource consumption.

In this guide we will troubleshoot nginx bind port issue on a Linux based operating system.

Applies To

• CentOS 7, tested on CentOS Linux release 7.3.1611 (Core)
• SELinux enable operating systems

Pre-Requisites

1. sudo or superuser access, for configuration changes (Nginx and SELinx).
2. Policycoreutils package has to be installed to run semange command.
3. If the package is not installed run the command;
• yum install policycoreutils -y
• yum install policycoreutils-python -y

Start Service – Nginx

After re-configuring ngnix server to start on non-default port, to start the service run the command;

systemctl start nginx

Also, to view the service status logs, run the command;

journalctl –xe or cat /var/log/messages

Bind Port issue - 9080

After configuring the nginx server, and you intend to modify the default listening port to non-conventional port and server is reconfigured to port 9080. Below error message will be thrown.

cd /var/log/nginx/

ls -l

tail error.log

Cause – Service Start

When SELinux is configured in enforcing mode, http service is allowed to bind to listed ports, this ports list can be retrieved with the below command, as listed below;

By default ports (80, 81, 443, 488, 8008, 8009, 8443, 9000) is open. But we are trying to bind the port to “9080” and start service, hence the service startup fails with permission denied error.

semanage port -l | grep ^"http_port_t"

Solution – Reconfigure SELinux

Add the http bind port to authorized port list, the port can be added by running the command;

semanage port -a -t http_port_t -p tcp 9080

semanage port -l | grep ^http_port_t

Validation – Service Start

Once you have reconfigure SELinux port, restart the nginx service and check the service status, telnet to hostname along with bind port, also additionally you can launch website, for which nginx start service has to be started, run the command;

systemctl start nginx

systemctl status nginx -l

Validation – Service Accessible

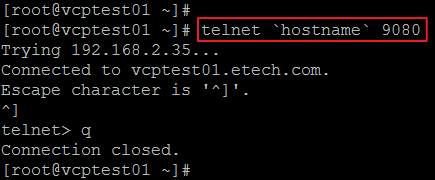

After starting the service you can check the service is accessible via telnet session, to know the status of service, run the command; the port should listen, alternately you can access the webpage from the browser.

telnet `hostname` '9080'

Slideshare Information

A step by step document is uploaded to Slideshare.

Nginx bind() to 0.0.0.0:9080 failed from VCP Muthukrishna
